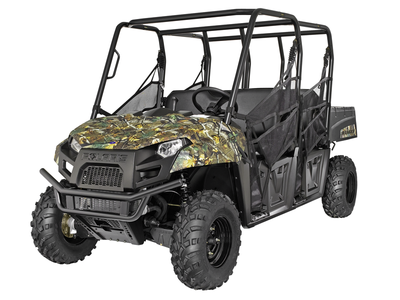

| 2014 Polaris® Ranger Crew® 570 EFI Polaris Pursuit® Camo |
| Year |
2014 |
| Manufacturer |
Polaris® |
| Model Name |
Ranger Crew® 570 EFI |
| Trim Name |
Polaris Pursuit® Camo |
| Generic Type (Primary) |
Side by Side |
| Engine |
| Engine Type |
4-Stroke Single Cylinder |
| Displacement |
567cc |
| Fuel System |
Electronic Fuel Injection |
| Cooling |
Liquid |
| Drivetrain |
| Transmission/Final Drive |
Auto. PVT H/L/N/R/P; Shaft |
| Drive System |
On-Demand True AWD/2WD/ VersaTrac Turf Mode |
| Engine Braking System/ Active Descent Control |
Not Equipped |
| Suspension |
| Front Suspension |
MacPherson Strut 8 in. (20.3 cm) Travel |
| Rear Suspension |
Dual A-Arm, IRS 9 in. (22.9 cm) Trave |
| Brakes |
| Front/Rear Brakes |
4-Wheel Hydraulic Disc w/ Dual-Bore Front Calipers |
| Parking Brake |
Park In-Transmission |
| Wheels & Tires |
| Front Tires / Model |
25 x 10-12; 489 |
| Rear Tires / Model |
25 x 10-12; 489 |
| Wheels |
Stamped Steel |
| Dimensions |
| Wheelbase |
105 in. (266.7 cm) |
| Dry Weight |
1274 lb (578 kg) |
| Overall Vehicle Size (LxWxH) |
140 x 60.0 x 73 in. (356 x 152 x 185 cm) |
| Ground Clearance |
10" (25.4 cm) |
| Seat Height |
N.A. |
| Fuel Capacity |
9 gal (34.1 L) |
| Bed Box Dimensions (LxWxH) |
32 x 42 x 11.5" (81 x 107 x 29 cm) |
| Front/Rear Rack Capacity |
N.A./500 lb (226.8 kg) |
| Payload Capacity |
1,250 lb (567 kg) |
| Hitch Towing Rating |
1,250 lb (567 kg) |
| Towing Capacity |
N.A. |
| Hitch/Type |
Standard/2" Receiver |
| Features |
| Cargo System |
Lock & Ride |
| Lighting |
50W Headlight, LED Tail |
| Electronic Power Steering |
Equipped on Premium Paint LE |
| Instrumentation |
Digital Gauge, Speedometer, Odometer, Tachometer, Tripmeter, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp, DC Outlets (1) |
